File formats

Contents: • Overview
• Examples
• CSV/TSV/etc.
• DKVP: Key-value pairs
• NIDX: Index-numbered (toolkit style)
• Tabular JSON
    • Single-level JSON objects
    • Nested JSON objects
    • Arrays
    • Formatting JSON options
    • JSON non-streaming
• PPRINT: Pretty-printed tabular
• XTAB: Vertical tabular
• Markdown tabular
• Data-conversion keystroke-savers
• Autodetect of line endings

Overview

Miller handles name-indexed data using several formats: some you probably know by name, such as CSV, TSV, and JSON — and other formats you’re likely already seeing and using in your structured data.

Examples

$ mlr --usage-data-format-examples
  DKVP: delimited key-value pairs (Miller default format)
  +---------------------+
  | apple=1,bat=2,cog=3 | Record 1: "apple" => "1", "bat" => "2", "cog" => "3"
  | dish=7,egg=8,flint  | Record 2: "dish" => "7", "egg" => "8", "3" => "flint"
  +---------------------+

  NIDX: implicitly numerically indexed (Unix-toolkit style)
  +---------------------+
  | the quick brown     | Record 1: "1" => "the", "2" => "quick", "3" => "brown"
  | fox jumped          | Record 2: "1" => "fox", "2" => "jumped"
  +---------------------+

  CSV/CSV-lite: comma-separated values with separate header line
  +---------------------+
  | apple,bat,cog       |
  | 1,2,3               | Record 1: "apple => "1", "bat" => "2", "cog" => "3"
  | 4,5,6               | Record 2: "apple" => "4", "bat" => "5", "cog" => "6"
  +---------------------+

  Tabular JSON: nested objects are supported, although arrays within them are not:
  +---------------------+
  | {                   |
  |  "apple": 1,        | Record 1: "apple" => "1", "bat" => "2", "cog" => "3"
  |  "bat": 2,          |
  |  "cog": 3           |
  | }                   |
  | {                   |
  |   "dish": {         | Record 2: "dish:egg" => "7", "dish:flint" => "8", "garlic" => ""
  |     "egg": 7,       |
  |     "flint": 8      |
  |   },                |
  |   "garlic": ""      |
  | }                   |
  +---------------------+

  PPRINT: pretty-printed tabular
  +---------------------+
  | apple bat cog       |
  | 1     2   3         | Record 1: "apple => "1", "bat" => "2", "cog" => "3"
  | 4     5   6         | Record 2: "apple" => "4", "bat" => "5", "cog" => "6"
  +---------------------+

  XTAB: pretty-printed transposed tabular
  +---------------------+
  | apple 1             | Record 1: "apple" => "1", "bat" => "2", "cog" => "3"
  | bat   2             |
  | cog   3             |
  |                     |
  | dish 7              | Record 2: "dish" => "7", "egg" => "8"
  | egg  8              |
  +---------------------+

  Markdown tabular (supported for output only):
  +-----------------------+
  | | apple | bat | cog | |
  | | ---   | --- | --- | |
  | | 1     | 2   | 3   | | Record 1: "apple => "1", "bat" => "2", "cog" => "3"
  | | 4     | 5   | 6   | | Record 2: "apple" => "4", "bat" => "5", "cog" => "6"
  +-----------------------+

CSV/TSV/etc.

When mlr is invoked with the --csv or --csvlite option, key names are found on the first record and values are taken from subsequent records. This includes the case of CSV-formatted files. See Record-heterogeneity for how Miller handles changes of field names within a single data stream.

Miller has record separator RS and field separator FS, just as awk does. For TSV, use --fs tab; to convert TSV to CSV, use --ifs tab --ofs comma, etc. (See also Reference.)

The following are synonymous pairs:

--tsv and --csv --fs tab
--itsv and --icsv --ifs tab
--otsv and --ocsv --ofs tab
--tsvlite and --csvlite --fs tab
--itsvlite and --icsvlite --ifs tab
--otsvlite and --ocsvlite --ofs tab

Miller’s --csv flag supports RFC-4180 CSV ( https://tools.ietf.org/html/rfc4180). This includes CRLF line-terminators by default, regardless of platform.

Here are the differences between CSV and CSV-lite:

CSV supports RFC-4180)-style double-quoting, including the ability to have commas and/or LF/CRLF line-endings contained within an input field; CSV-lite does not.
CSV does not allow heterogeneous data; CSV-lite does (see also here).
The CSV-lite input-reading code is fractionally more efficient than the CSV input-reader.

Here are things they have in common:

The ability to specify record/field separators other than the default, e.g. CR-LF vs. LF, or tab instead of comma for TSV, and so on.
The --implicit-csv-header flag for input and the --headerless-csv-output flag for output.

DKVP: Key-value pairs

Miller’s default file format is DKVP, for delimited key-value pairs. Example:

$ mlr cat data/small
a=pan,b=pan,i=1,x=0.3467901443380824,y=0.7268028627434533
a=eks,b=pan,i=2,x=0.7586799647899636,y=0.5221511083334797
a=wye,b=wye,i=3,x=0.20460330576630303,y=0.33831852551664776
a=eks,b=wye,i=4,x=0.38139939387114097,y=0.13418874328430463
a=wye,b=pan,i=5,x=0.5732889198020006,y=0.8636244699032729

Such data are easy to generate, e.g. in Ruby with

puts "host=#{hostname},seconds=#{t2-t1},message=#{msg}"

puts mymap.collect{|k,v| "#{k}=#{v}"}.join(',')

or print statements in various languages, e.g.

echo "type=3,user=$USER,date=$date\n";

logger.log("type=3,user=$USER,date=$date\n");

Fields lacking an IPS will have positional index (starting at 1) used as the key, as in NIDX format. For example, dish=7,egg=8,flint is parsed as "dish" => "7", "egg" => "8", "3" => "flint" and dish,egg,flint is parsed as "1" => "dish", "2" => "egg", "3" => "flint".

As discussed in Record-heterogeneity, Miller handles changes of field names within the same data stream. But using DKVP format this is particularly natural. One of my favorite use-cases for Miller is in application/server logs, where I log all sorts of lines such as

resource=/path/to/file,loadsec=0.45,ok=true
record_count=100, resource=/path/to/file
resource=/some/other/path,loadsec=0.97,ok=false

etc. and I just log them as needed. Then later, I can use grep, mlr --opprint group-like, etc. to analyze my logs.

See Reference regarding how to specify separators other than the default equals-sign and comma.

NIDX: Index-numbered (toolkit style)

With --inidx --ifs ' ' --repifs, Miller splits lines on whitespace and assigns integer field names starting with 1. This recapitulates Unix-toolkit behavior.

Example with index-numbered output:

$ cat data/small
a=pan,b=pan,i=1,x=0.3467901443380824,y=0.7268028627434533
a=eks,b=pan,i=2,x=0.7586799647899636,y=0.5221511083334797
a=wye,b=wye,i=3,x=0.20460330576630303,y=0.33831852551664776
a=eks,b=wye,i=4,x=0.38139939387114097,y=0.13418874328430463
a=wye,b=pan,i=5,x=0.5732889198020006,y=0.8636244699032729

$ mlr --onidx --ofs ' ' cat data/small
pan pan 1 0.3467901443380824 0.7268028627434533
eks pan 2 0.7586799647899636 0.5221511083334797
wye wye 3 0.20460330576630303 0.33831852551664776
eks wye 4 0.38139939387114097 0.13418874328430463
wye pan 5 0.5732889198020006 0.8636244699032729

Example with index-numbered input:

$ cat data/mydata.txt
oh say can you see
by the dawn's
early light

$ mlr --inidx --ifs ' ' --odkvp cat data/mydata.txt
1=oh,2=say,3=can,4=you,5=see
1=by,2=the,3=dawn's
1=early,2=light

Example with index-numbered input and output:

$ cat data/mydata.txt
oh say can you see
by the dawn's
early light

$ mlr --nidx --fs ' ' --repifs cut -f 2,3 data/mydata.txt
say can
the dawn's
light

Tabular JSON

JSON is a format which supports arbitrarily deep nesting of “objects” (hashmaps) and “arrays” (lists), while Miller is a tool for handling tabular data only. This means Miller cannot (and should not) handle arbitrary JSON. (Check out jq.)

But if you have tabular data represented in JSON then Miller can handle that for you.

Single-level JSON objects

An array of single-level objects is, quite simply, a table:

$ mlr --json head -n 2 then cut -f color,shape data/json-example-1.json
{ "color": "yellow", "shape": "triangle" }
{ "color": "red", "shape": "square" }

$ mlr --json --jvstack head -n 2 then cut -f color,u,v data/json-example-1.json
{
  "color": "yellow",
  "u": 0.6321695890307647,
  "v": 0.9887207810889004
}
{
  "color": "red",
  "u": 0.21966833570651523,
  "v": 0.001257332190235938
}

$ mlr --ijson --opprint stats1 -a mean,stddev,count -f u -g shape data/json-example-1.json
shape    u_mean   u_stddev u_count
triangle 0.583995 0.131184 3
square   0.409355 0.365428 4
circle   0.366013 0.209094 3

Nested JSON objects

Additionally, Miller can tabularize nested objects by concatentating keys:

$ mlr --json --jvstack head -n 2 data/json-example-2.json
{
  "flag": 1,
  "i": 11,
  "attributes": {
    "color": "yellow",
    "shape": "triangle"
  },
  "values": {
    "u": 0.632170,
    "v": 0.988721,
    "w": 0.436498,
    "x": 5.798188
  }
}
{
  "flag": 1,
  "i": 15,
  "attributes": {
    "color": "red",
    "shape": "square"
  },
  "values": {
    "u": 0.219668,
    "v": 0.001257,
    "w": 0.792778,
    "x": 2.944117
  }
}

$ mlr --ijson --opprint head -n 4 data/json-example-2.json
flag i  attributes:color attributes:shape values:u values:v values:w values:x
1    11 yellow           triangle         0.632170 0.988721 0.436498 5.798188
1    15 red              square           0.219668 0.001257 0.792778 2.944117
1    16 red              circle           0.209017 0.290052 0.138103 5.065034
0    48 red              square           0.956274 0.746720 0.775542 7.117831

Note in particular that as far as Miller’s put and filter, as well as other I/O formats, are concerned, these are simply field names with colons in them:

$ mlr --json --jvstack head -n 1 then put '${values:uv} = ${values:u} * ${values:v}' data/json-example-2.json
{
  "flag": 1,
  "i": 11,
  "attributes": {
    "color": "yellow",
    "shape": "triangle"
  },
  "values": {
    "u": 0.632170,
    "v": 0.988721,
    "w": 0.436498,
    "x": 5.798188,
    "uv": 0.625040
  }
}

Arrays

Arrays aren’t supported in Miller’s put/filter DSL. By default, JSON arrays are read in as integer-keyed maps.

Suppose you have arrays like this in our input data:

$ cat data/json-example-3.json
{
  "label": "orange",
  "values": [12.2, 13.8, 17.2]
}
{
  "label": "purple",
  "values": [27.0, 32.4]
}

Then integer indices (starting from 0 and counting up) are used as map keys:

$ mlr --ijson --oxtab cat data/json-example-3.json
label    orange
values:0 12.2
values:1 13.8
values:2 17.2

label    purple
values:0 27.0
values:1 32.4

When the data are written back out as JSON, field names are re-expanded as above, but what were arrays on input are now maps on output:

$ mlr --json --jvstack cat data/json-example-3.json
{
  "label": "orange",
  "values": {
    "0": 12.2,
    "1": 13.8,
    "2": 17.2
  }
}
{
  "label": "purple",
  "values": {
    "0": 27.0,
    "1": 32.4
  }
}

This is non-ideal, but it allows Miller (5.x release being latest as of this writing) to handle JSON arrays at all.

You might also use mlr --json-skip-arrays-on-input or mlr --json-fatal-arrays-on-input. To truly handle JSON, please use a JSON-processing tool such as jq.

Formatting JSON options

JSON isn’t a parameterized format, so RS, FS, PS aren’t specifiable. Nonetheless, you can do the following:

Use --jvstack to pretty-print JSON objects with multi-line (vertically stacked) spacing. By defaulty, each Miller record (JSON object) is one per line.
Use --jlistwrap to print the sequence of JSON objects wrapped in an outermost [ and ]. By default, these aren’t printed.
Use --jquoteall to double-quote all object values. By default, integers, floating-point numbers, and booleans true and false are not double-quoted when they appear as JSON-object keys.
Use --jflatsep yourstringhere to specify the string used for key concatenation: this defaults to a single colon.

Again, please see jq for a truly powerful, JSON-specific tool.

JSON non-streaming

The JSON parser Miller uses does not return until all input is parsed: in particular this means that, unlike for other file formats, Miller does not (at present) handle JSON files in tail -f contexts.

PPRINT: Pretty-printed tabular

Miller’s pretty-print format is like CSV, but column-aligned. For example, compare

$ mlr --ocsv cat data/small
a,b,i,x,y
pan,pan,1,0.3467901443380824,0.7268028627434533
eks,pan,2,0.7586799647899636,0.5221511083334797
wye,wye,3,0.20460330576630303,0.33831852551664776
eks,wye,4,0.38139939387114097,0.13418874328430463
wye,pan,5,0.5732889198020006,0.8636244699032729

$ mlr --opprint cat data/small
a   b   i x                   y
pan pan 1 0.3467901443380824  0.7268028627434533
eks pan 2 0.7586799647899636  0.5221511083334797
wye wye 3 0.20460330576630303 0.33831852551664776
eks wye 4 0.38139939387114097 0.13418874328430463
wye pan 5 0.5732889198020006  0.8636244699032729

Note that while Miller is a line-at-a-time processor and retains input lines in memory only where necessary (e.g. for sort), pretty-print output requires it to accumulate all input lines (so that it can compute maximum column widths) before producing any output. This has two consequences: (a) pretty-print output won’t work on tail -f contexts, where Miller will be waiting for an end-of-file marker which never arrives; (b) pretty-print output for large files is constrained by available machine memory.

See Record-heterogeneity for how Miller handles changes of field names within a single data stream.

For output only (this isn’t supported in the input-scanner as of 5.0.0) you can use --barred with pprint output format:

$ mlr --opprint --barred cat data/small
+-----+-----+---+---------------------+---------------------+
| a   | b   | i | x                   | y                   |
+-----+-----+---+---------------------+---------------------+
| pan | pan | 1 | 0.3467901443380824  | 0.7268028627434533  |
| eks | pan | 2 | 0.7586799647899636  | 0.5221511083334797  |
| wye | wye | 3 | 0.20460330576630303 | 0.33831852551664776 |
| eks | wye | 4 | 0.38139939387114097 | 0.13418874328430463 |
| wye | pan | 5 | 0.5732889198020006  | 0.8636244699032729  |
+-----+-----+---+---------------------+---------------------+

XTAB: Vertical tabular

This is perhaps most useful for looking a very wide and/or multi-column data which causes line-wraps on the screen (but see also https://github.com/twosigma/ngrid for an entirely different, very powerful option). Namely:

$ grep -v '^#' /etc/passwd | head -n 6 | mlr --nidx --fs : --opprint cat
1          2 3  4  5                          6               7
nobody     * -2 -2 Unprivileged User          /var/empty      /usr/bin/false
root       * 0  0  System Administrator       /var/root       /bin/sh
daemon     * 1  1  System Services            /var/root       /usr/bin/false
_uucp      * 4  4  Unix to Unix Copy Protocol /var/spool/uucp /usr/sbin/uucico
_taskgated * 13 13 Task Gate Daemon           /var/empty      /usr/bin/false
_networkd  * 24 24 Network Services           /var/networkd   /usr/bin/false

$ grep -v '^#' /etc/passwd | head -n 2 | mlr --nidx --fs : --oxtab cat
1 nobody
2 *
3 -2
4 -2
5 Unprivileged User
6 /var/empty
7 /usr/bin/false

1 root
2 *
3 0
4 0
5 System Administrator
6 /var/root
7 /bin/sh

$ grep -v '^#' /etc/passwd | head -n 2 | \
  mlr --nidx --fs : --ojson --jvstack --jlistwrap label name,password,uid,gid,gecos,home_dir,shell
[
{
  "name": "nobody",
  "password": "*",
  "uid": -2,
  "gid": -2,
  "gecos": "Unprivileged User",
  "home_dir": "/var/empty",
  "shell": "/usr/bin/false"
}
,{
  "name": "root",
  "password": "*",
  "uid": 0,
  "gid": 0,
  "gecos": "System Administrator",
  "home_dir": "/var/root",
  "shell": "/bin/sh"
}
]

Markdown tabular

Markdown format looks like this:

$ mlr --omd cat data/small
| a | b | i | x | y |
| --- | --- | --- | --- | --- |
| pan | pan | 1 | 0.3467901443380824 | 0.7268028627434533 |
| eks | pan | 2 | 0.7586799647899636 | 0.5221511083334797 |
| wye | wye | 3 | 0.20460330576630303 | 0.33831852551664776 |
| eks | wye | 4 | 0.38139939387114097 | 0.13418874328430463 |
| wye | pan | 5 | 0.5732889198020006 | 0.8636244699032729 |

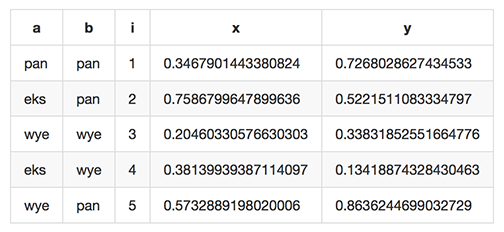

which renders like this when dropped into various web tools (e.g. github comments):

As of Miller 4.3.0, markdown format is supported only for output, not input.

Data-conversion keystroke-savers

While you can do format conversion using mlr --icsv --ojson cat myfile.csv, there are also keystroke-savers for this purpose, such as mlr --c2j cat myfile.csv. For a complete list:

$ mlr --usage-format-conversion-keystroke-saver-options
As keystroke-savers for format-conversion you may use the following:
  --c2t --c2d --c2n --c2j --c2x --c2p --c2m
  --t2c       --t2d --t2n --t2j --t2x --t2p --t2m
  --d2c --d2t       --d2n --d2j --d2x --d2p --d2m
  --n2c --n2t --n2d       --n2j --n2x --n2p --n2m
  --j2c --j2t --j2d --j2n       --j2x --j2p --j2m
  --x2c --x2t --x2d --x2n --x2j       --x2p --x2m
  --p2c --p2t --p2d --p2n --p2j --p2x       --p2m
The letters c t d n j x p m refer to formats CSV, TSV, DKVP, NIDX, JSON, XTAB,
PPRINT, and markdown, respectively. Note that markdown format is available for
output only.
